Leírás és Paraméterek

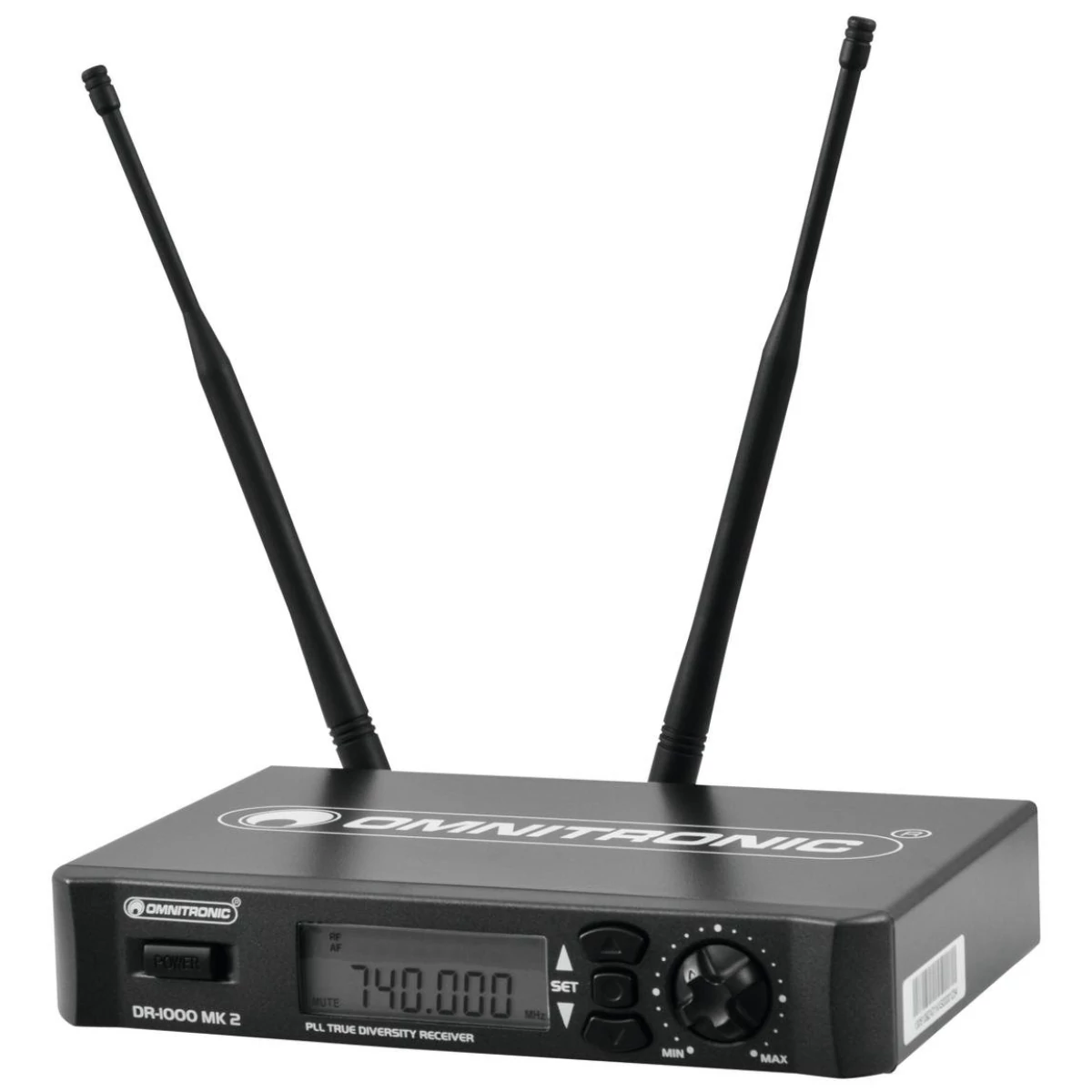

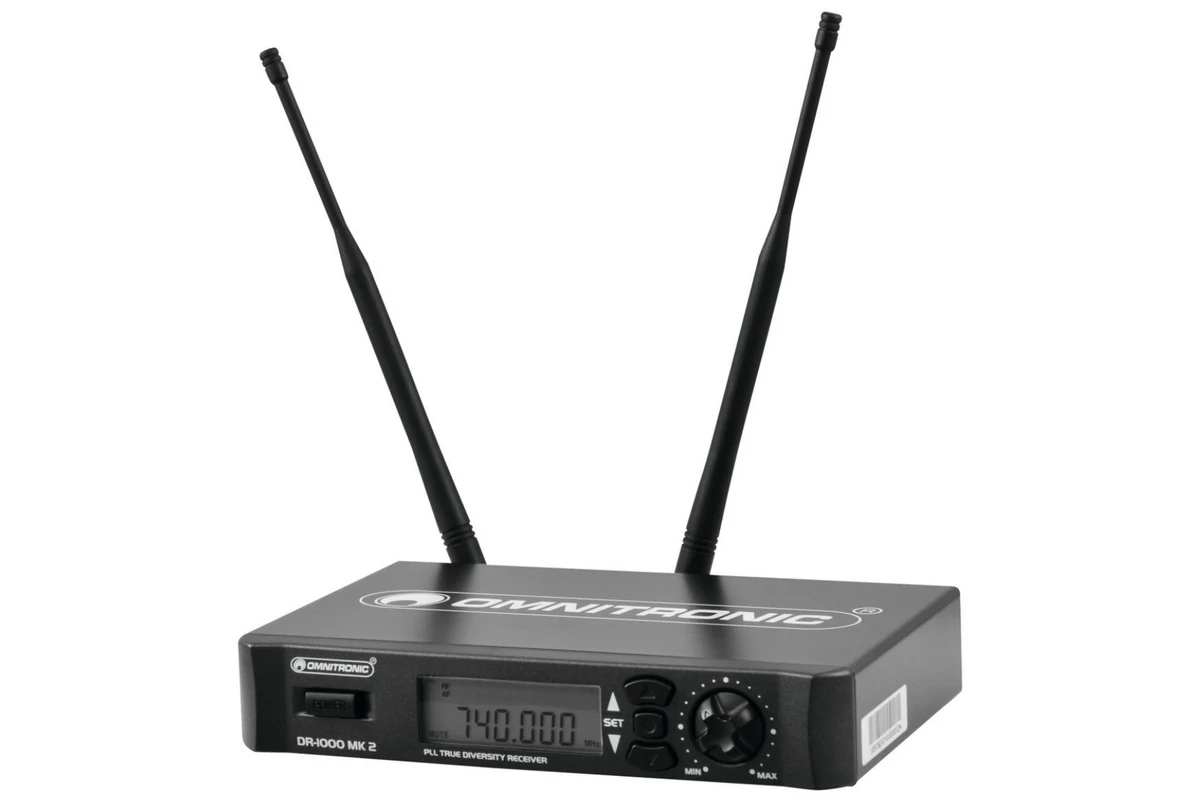

Multifrequency wireless receiver, True Diversity
A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.
A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.
- Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception
- Operation in the low-interference UHF band
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- System expandable to up to 16 receivers with 16 microphones
- Automatic frequency scan
- Output level control
- Lock function for prevents undesired changes to settings
- Mute mode when signal is absent or too weak
- XLR and 6.3 mm jack output
- Rugged metal housing
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- UHF 740 - 764 MHz License-free and approved in large parts of europe
- Operating range up to 100m with line-of-sight
- Desktop console housing
- (19") 48.3 cm rack installation possible
Manuals
Manuals| Type | Receiver |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 6,00 W |
| Power connection | Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels | 1 |
| Frequency range | 40 - 18000 Hz |
| S/N ratio | >105 dB |
| THD | <0,6 % at 1 kHz |
| Display | Charge level , antenna A/B , RF signal level , AF audio level; frequency |
| Connections | Output:Microphone via 1 x 3-pin XLR |
| Output | Microphone via 1 x 6.3 mm jack socket (stereo) mounting version |
| Frequency band | UHF 740 - 764 MHz |
| Frequency selection | 192 Switchable frequencys |
| Modulation | FM |
| Frequency stability | ± 0,0005 % |
| Range | Range up to 100m with line-of-sight |
| Switching bandwidth | 24 MHz |
| Switch | On/off switch |
| Diversity | True diversity |
| Housing design | Desktop console housing |
| (19") 48.3 cm rack installation possible | |
| Dimensions | Width:21,3 cm |
| Depth | 15 cm |
| Height | 4 cm |
| Weight | 1,33 kg |
