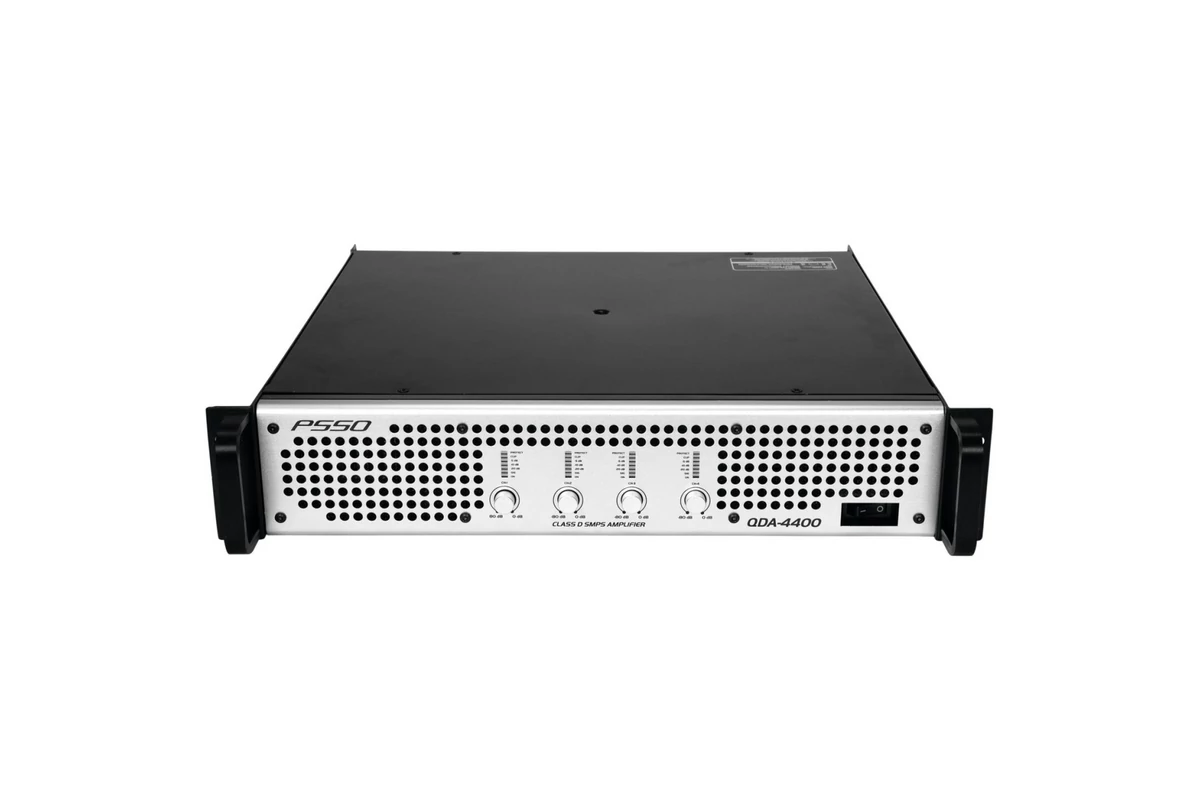

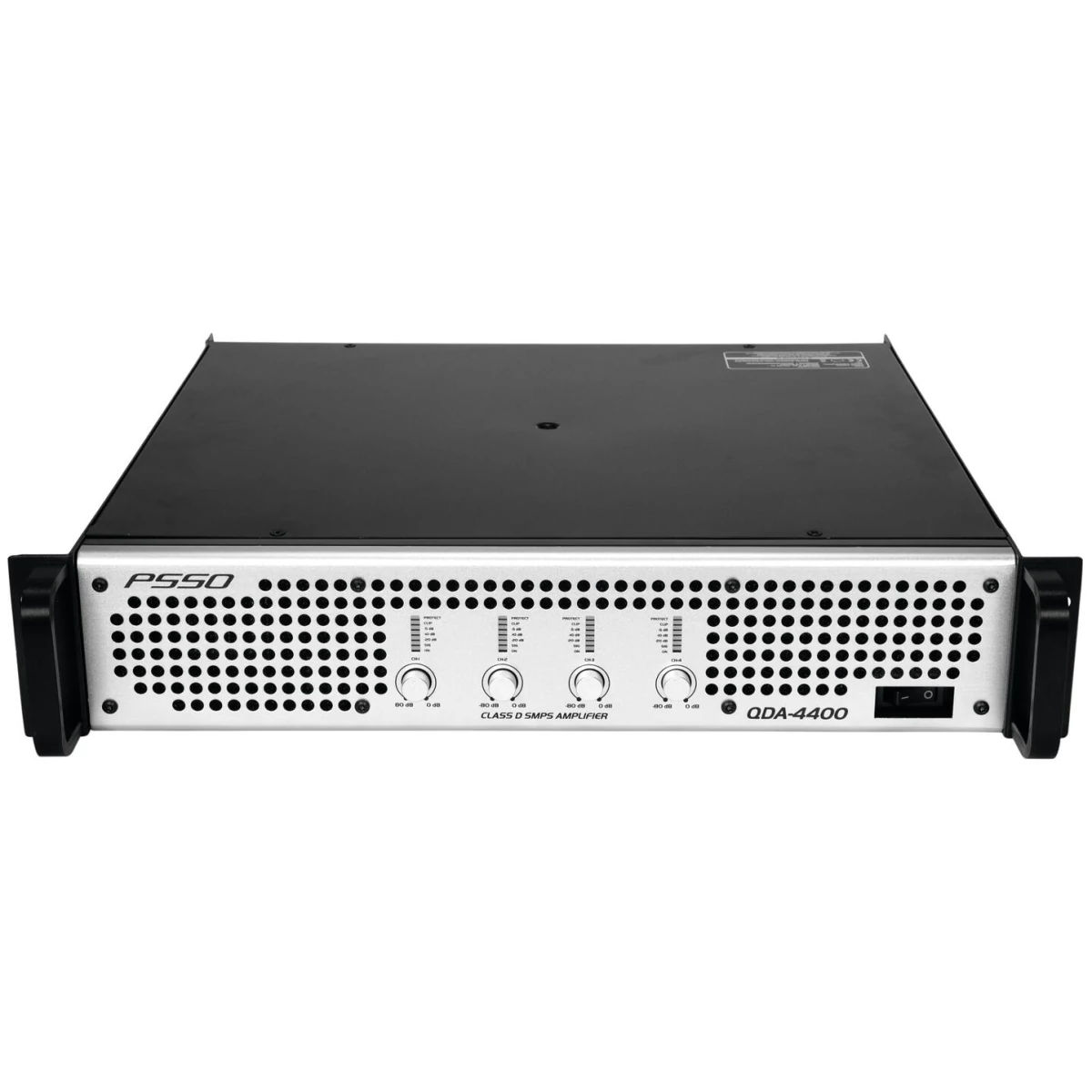

PSSO QDA-4400 4-channel Amplifier

269.900 Ft (212.520 Ft + ÁFA)
Jelölje be a vásárolni kívánt kiegészítő termékeket!
Menny.:db
Klikkelj ide szállítás, fizetés, személyes átvétel infoért
Elérhetőség: Központi raktáron
Szállítási díj: Ingyenes
GARANCIA: 3 év garancia
Reg hűségforintok: 2699

A csomagszámodat emailben küldjük, a csomag feladása után.

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás és Paraméterek

Class D multi-channel PA amplifier with SMPS, 4 x 1100 W RMS (4 ohms), 4 x 650 W RMS (8 ohms)
4-channel PA amplifier with 5kW of powerThe QDA-4400 PA amplifier offers ultra-high output power paired with a low weight and small overall height. The amplifier uses a Class D output circuitry. Featuring a modern switch-mode power supply, the amplifier provides up to 5 kW peak power and weighs less than 10 kg. This makes this model particularly attractive for mobile applications. The amplifier can be used flexibly in stereo operation, parallel operation or in bridge operation. Extensive protective circuits will protect the amplifier and the speakers connected.

  • 4-channel PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, concerts)
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Level control per channel
  • Input sensitivity adjustable
  • LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs
  • Rugged steel chassis with aluminum front panel
  • (19") 48.3 cm rack installation 2 U
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms


Scope of delivery
  • 1 x amplifier
  • 1 x power cord
  • 1 x user manual

Manuals

Manuals
Power supply 100-240 V AC, 50/60 Hz
Power consumption 830 W 1/8 power
Protection class Protection class I
Output power 4 x 1100 W RMS (4 ohms)
4 x 650 W RMS (8 ohms)
2 x 2000 W RMS bridged (8 ohms)
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range 20 - 20000 Hz
S/N ratio >100 dB
THD <0.1 % at 1 kHz
Cooling 2 x temperature-controlled fan , air flow from front to rear
Impedance Input:20 kOhm , bal.
Input 10 kOhm , unbal.
Gain 39.9 dB
Housing color Black
Circuitry Class D
Slew rate >10 V/µs
Damping factor >500
Crosstalk >65 dB
Control elements Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch
Controls Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter
Status LED Power, level meter, clip, protect
Connections Input:line via 4 x 3-pin XLR
Output line via 4 x 3-pin XLR
Output speaker via 4 x speaker built-in socket (F)
Input sensitivity 0.775 V; 1.0 V; 1.81 V , switchable; 32 dB; 37 dB; 39.3 dB , switchable
Housing design (19") 48.3 cm rack installation 2 U
Dimensions Width:48.3 cm
Depth 46.1 cm
Height 8.9 cm
Weight 9.50 kg
