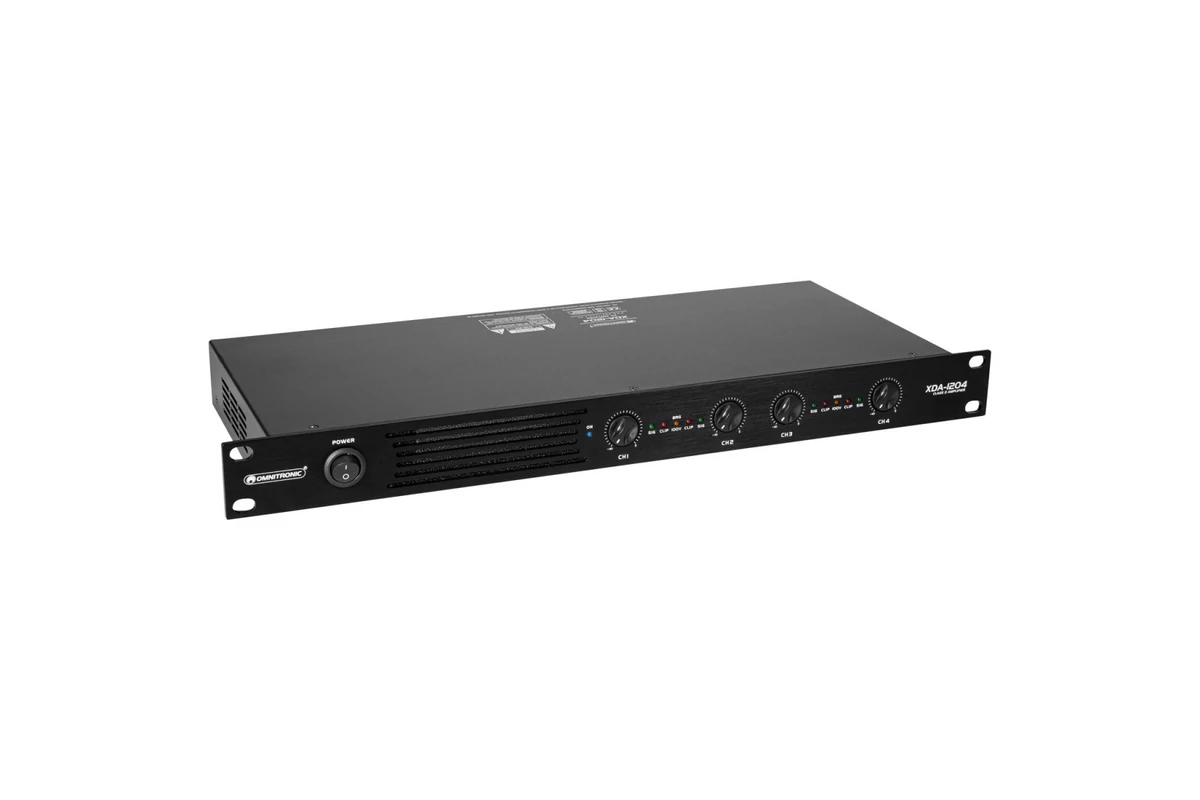

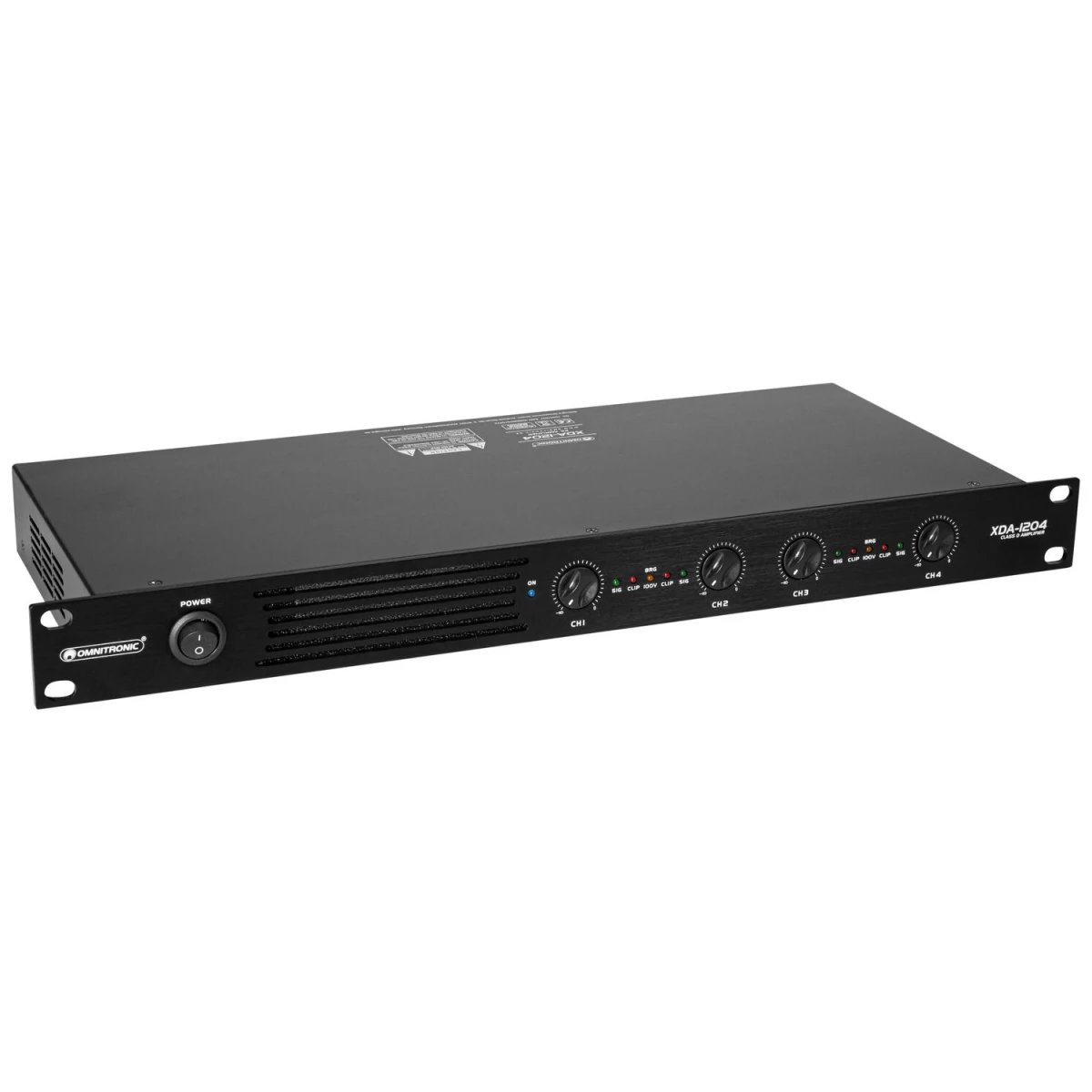

OMNITRONIC XDA-1204 4-channel Class D Amplifier

158.290 Ft (124.638 Ft + ÁFA)
Menny.:db
Klikkelj ide szállítás, fizetés, személyes átvétel infoért
Elérhetőség: Központi raktáron
Szállítási díj: Ingyenes
GARANCIA: 2 év garancia
Reg hűségforintok: 1583

A csomagszámodat emailben küldjük, a csomag feladása után.

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Leírás és Paraméterek

Class D multi-channel PA amplifier with SMPS, 4 x 300 W RMS (4 ohms), 4 x 180 W RMS (8 ohms)
  • Extremely low weight and height due to integrated switch mode power supply
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • Level control per channel
  • (19") 48.3 cm rack installation 1 U
  • For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms


Scope of delivery
  • 1 x amplifier
  • 1 x user manual
  • 1 x power cord
  • 6 x screw plug-in terminal
  • 4 x foot

Manuals

Manuals
Power supply 230 V AC, 50 Hz
Power consumption 1440 W
Protection class Protection class I
Output power 4 x 300 W RMS (4 ohms)
4 x 180 W RMS (8 ohms)
2 x 600 W RMS bridged (8 ohms)
2 x 600 W RMS bridged (100 V)
Power connection Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Fuse 5 x 20 mm, T 8 A fuse replaceable
Frequency range 20 - 20000 Hz
S/N ratio >100 dB
THD <0.05 % at 1 kHz
Impedance Input:20 kOhm , bal.
Input 10 kOhm , unbal.
Gain 31 dB/ 0.775 V
Housing color Black matte
Circuitry Class D
Slew rate >20 V/µs
Damping factor >300
Control elements Power switch, mode switch (stereo/parallel/bridged), level control per channel
Controls Softstart; overheat; overload; short-circuit; DC voltage
Status LED Power, signal, clip, bridged
Connections Input:line via 4 x 3-pin XLR
Output line via 4 x 3-pin XLR
Output speaker via 4 x speaker built-in socket (F)
Output speaker via 4 x screw plug-in terminal
Input line via 4 x screw plug-in terminal
Input sensitivity 0.775 V
Housing design (19") 48.3 cm rack installation 1 U
Dimensions Width:48.3 cm
Depth 20.5 cm
Height 4.4 cm
Weight 3.33 kg
