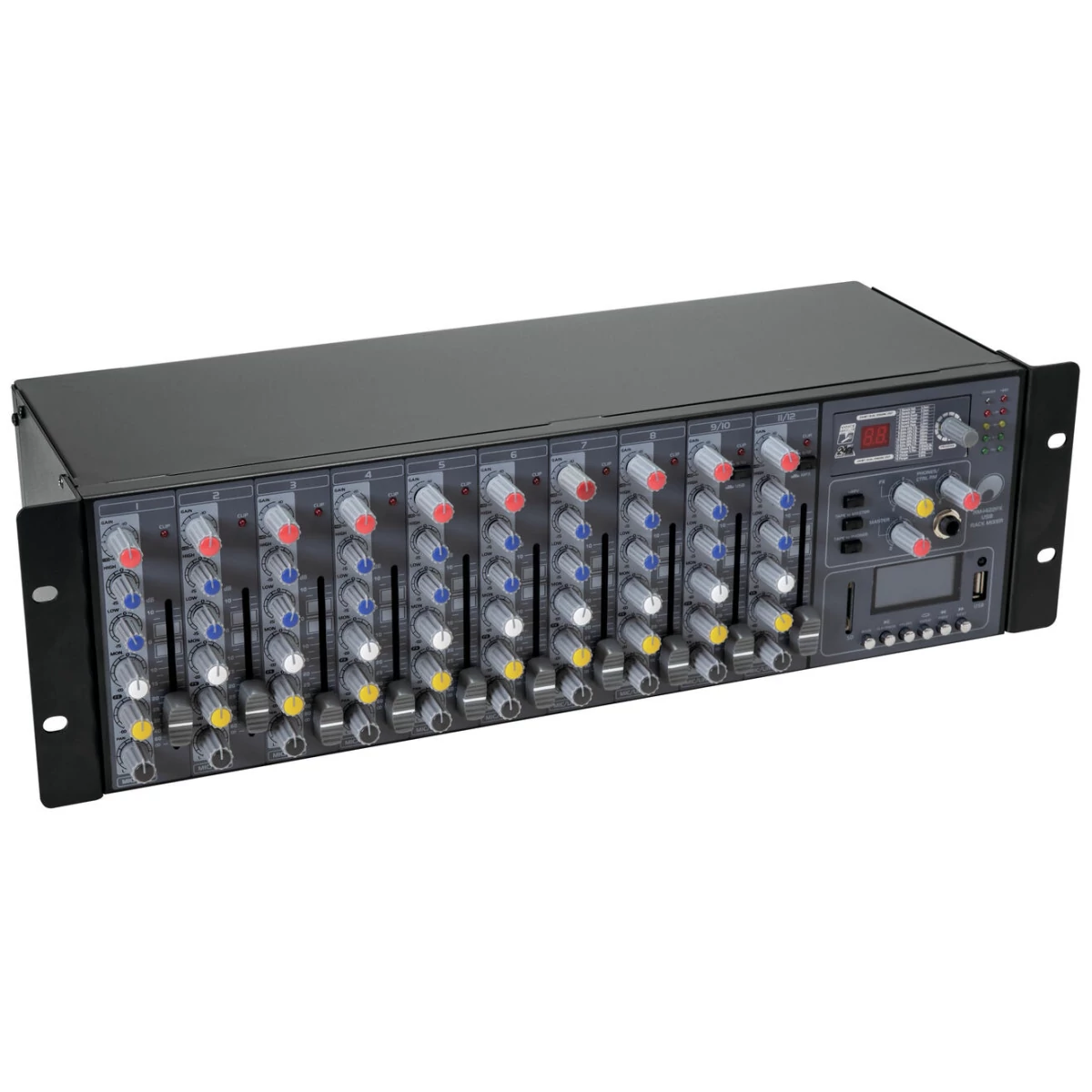

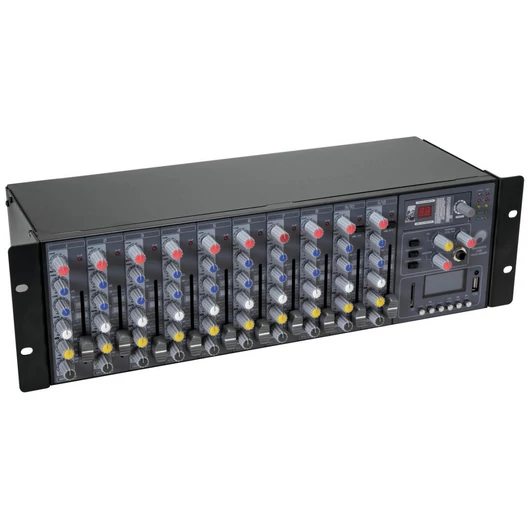

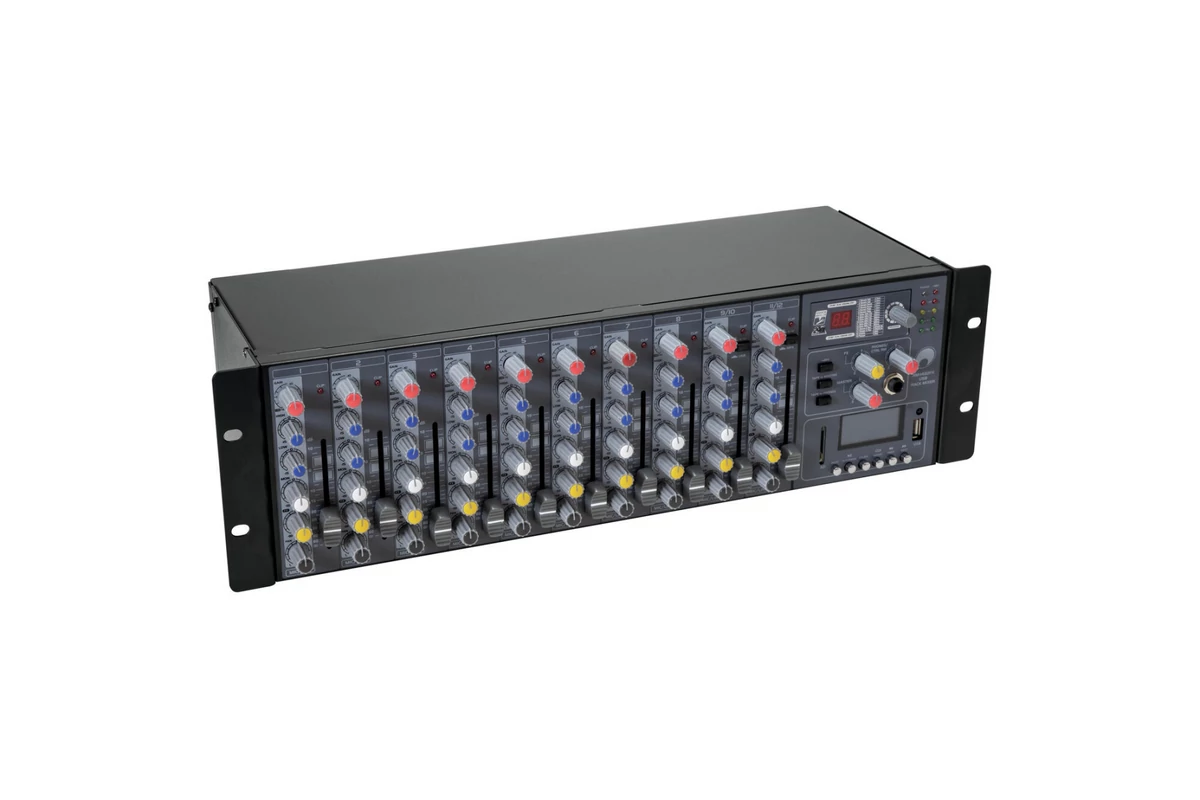

PRO 19" mixer with 12 channels, DSP FX unit and MP3 player
Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
PRO 19" mixer with 12 channels, DSP FX unit and MP3 player
Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 aux send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- MP3 player with SD card slot, USB input, LCD and IR remote control
- Digital signal processor 24 bit with 16 effects
- Controlling by IR remote control
- (19") 48.3 cm rack installation 3 U
Manuals
Manuals| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 50 W |
| Protection class | Class I |
| Power connection | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Fuse | Device fuse 5 x 20 mm, T 0,5 A Fuse replaceable |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >89 dB |
| THD | <0,05 % at 1 kHz |
| DSP | Digital signal processor 24 bit with 16 effects |
| Control | IR remote control |
| Audio player | USB + SD |
| Housing color | Silver |
| Display type | Monochrome LCD display |
| Monochrome 2 digits 7-segment LED display | |
| Control elements | Phantom power switch, Audio player, encoder |
| Status LED | Power, master level meter, clip, phantom power |
| Connections | Input:8 x Microphone via 3-pin XLR |
| Input | 12 x line via 6.3 mm jack socket (mono) mounting version |
| Input | 1 x 2-Track via stereo RCA |
| Input | 2 x AUX returns via 6.3 mm jack socket (mono) mounting version |
| Output | 2 x AUX sends via 6.3 mm jack socket (stereo) mounting version |
| Output | 1 x 2-Track via stereo RCA |
| Output | 2 x master via 3-pin XLR |
| Output | 1 x headphones via 6.3 mm jack socket (stereo) mounting version |
| Output | 2 x control room via 6.3 mm plug (unbal.) |
| Insert | 8 x via 6.3 mm jack socket (stereo) mounting version |
| Link | 1 x line via USB B (W) mounting version |
| Chanals | Input chanel:8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol, |
| Input chanel | 1 x stereo with Line-USB switch via Plug 6,3mm/3,5mm (Jack), channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, |
| Input chanel | 1 x stereo with Line-player switch via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, |
| Master output | 1 x stereo via XLR, channel control via Rotary dial |
| Headphones output | 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| USB port | 1 x Typ A; 1 x USB 1.1, Typ B |
| Material | Metal |
| Housing design | (19") 48.3 cm rack installation 3 U |
| Dimensions | Width:48,3 cm |
| Depth | 18 cm |
| Height | 13,35 cm |
| Weight | 4,07 kg |
| Remote control | |
| Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
