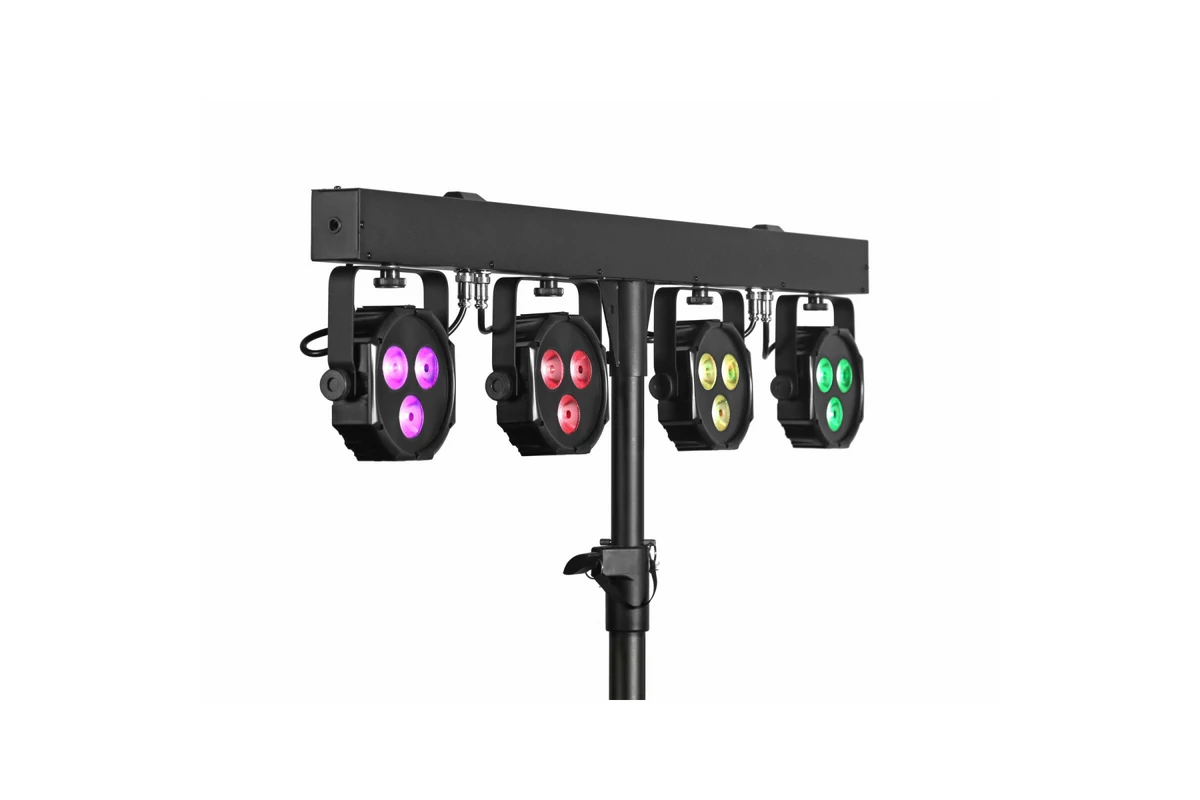

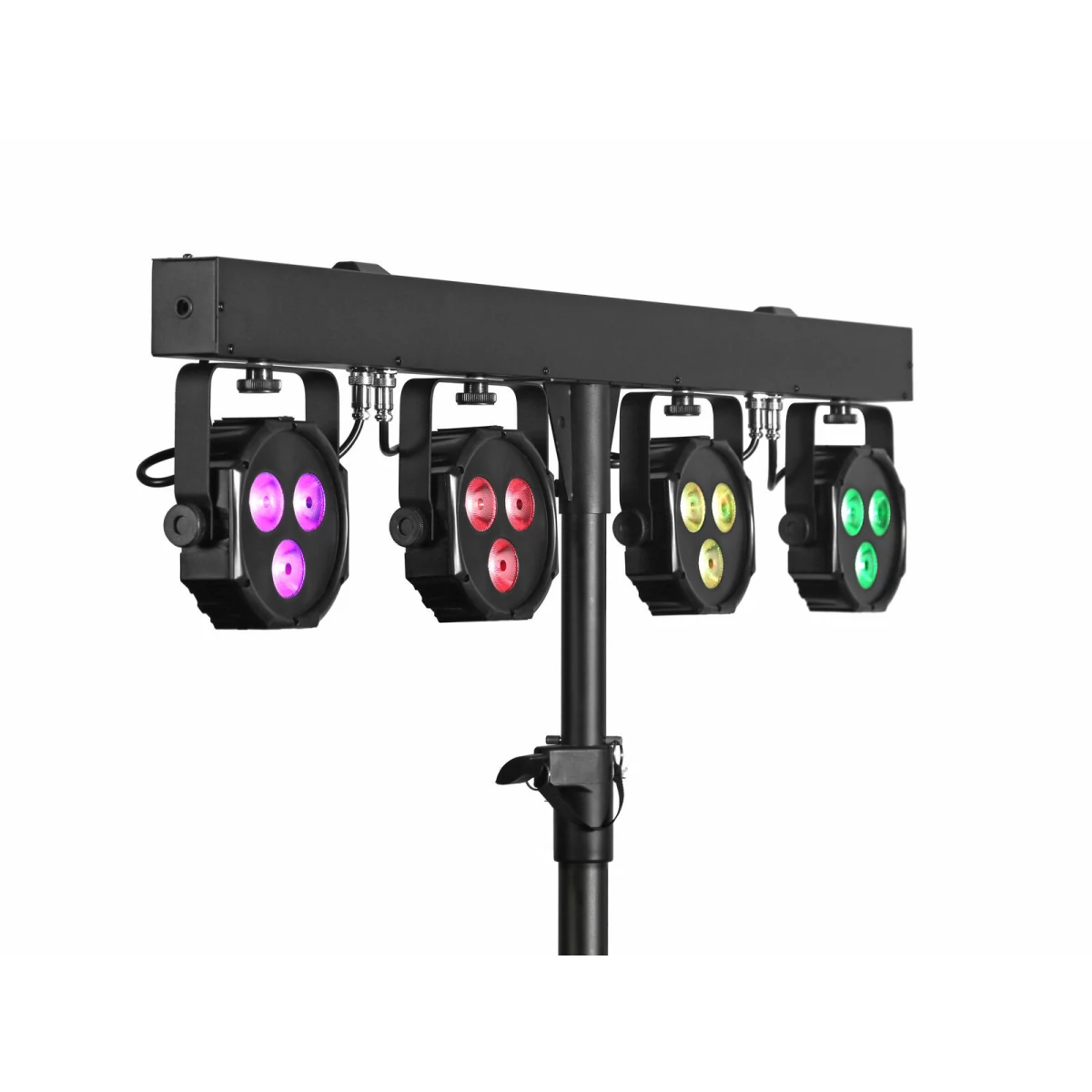

Bar with 4 powerful 4in1 QCL RGB/WW spots, AirW wireless system (2.4 GHz), wireless remote control and transport bag
Scope of delivery
- Crossbar with integrated DMX control unit and stand sleeve
- Integrated AirW radio transceiver for wireless master/slave operation
- AirW: operating range up to 70m with line-of-sight
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- 12 powerful LEDs 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix)
4 spots controlled separately - With a beam angle of 12°
- Spot effect; strobe effect
- Dimmer electronic; color fade adjustable; color change adjustable; color blend stepless; color selection; program selection; program speed adjustable; color macros
- Direct color selection for 20 preset colors
- 20 integrated show programs
- Control via stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional)
- 3 buttons on the remote control for saving your own settings
- DMX fail mode (blackout; hold; full on; auto)
- Good color rendering index (CRI)
- Flicker-free
- Monochrome 4 digit 7-segment LED display
- With mounting bracket
- Silent operation
- The device is cooled by passive convection cooling
- For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Suspended; on stand
- Mains input and output for power linking up to 8 units
remote control
- Wireless remote control: operating range up to 30m with line-of-sight
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x remote control
- 1 x battery
- 2 x mounting bracket
- 1 x declaration of conformity
- 9 x knurled screw
- 1 x bag
- 9 x washer
- 1 x adapter
Manuals
Manuals| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 50 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output | 1 x P-Con (gray), mounting version Bypass |
| 2 x IEC connector (F) mounting version fused / 5A | |
| Device fuse | 5 x 20 mm, T 1.6 A fuse replaceable |
| Power output fuse per channel | 5 x 20 mm, T 5 A fuse replaceable |
| Lamp type | LED lamp |
| LED type | 12 x 10 W SMD 5050 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate | 0.3 - 20 Hz |
| DMX channels | 3; 4; 6; 8; 16; 18; 20 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version Bypass |
| Cooling | Passive convection cooling |
| Control | Stand-alone; sound to light via microphone; master/slave function; rotary dial for brightness; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); AirW; wireless Master/slave function; wireless remote control; wireless footswitch (optional) |
| Projection | Flicker-free |
| Range | AirW:range up to 70m with line-of-sight |
| Carrier frequency | 2.4 GHz |
| Modulation | GFSK |
| DMX fail mode | Blackout; hold; full on; auto |
| Beam angle | 12° |
| Beam angle (1/2 peak) | Spot 12° |
| Beam angle (1/10 peak) | Spot 25° |
| Color temperature | 2880K |
| Color rendering index (CRI) | 83 Ra |
| Housing color | Black matte |
| Attachment system | Tube:1x Ø 35mm |
| 2x mounting bracket | |
| Display type | 1 x monochrome 4 digit 7-segment LED display |
| USB port | 1 x type A |
| Diameter mounting holes | 2 x Ø8mm |
| Dimensions | Length:104 cm |
| Width | 5.5 cm |
| Height | 24.9 cm |
| Weight | 7.40 kg |
| Noise classification | Class 0 (no noise at all) |
| Power cord | |
| Cable construction | 3 x 1.0 mm² H05VV-F |
| Cable length | Approx. 3 m |
| Remote control | |
| Battery | 1 x 12 V 23AE alkaline manganese included |
| Range | Wireless remote control:range up to 30m with line-of-sight |
| Carrier frequency | 433.92 MHz |
| Bar | |
| Material | Metal, painted |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
