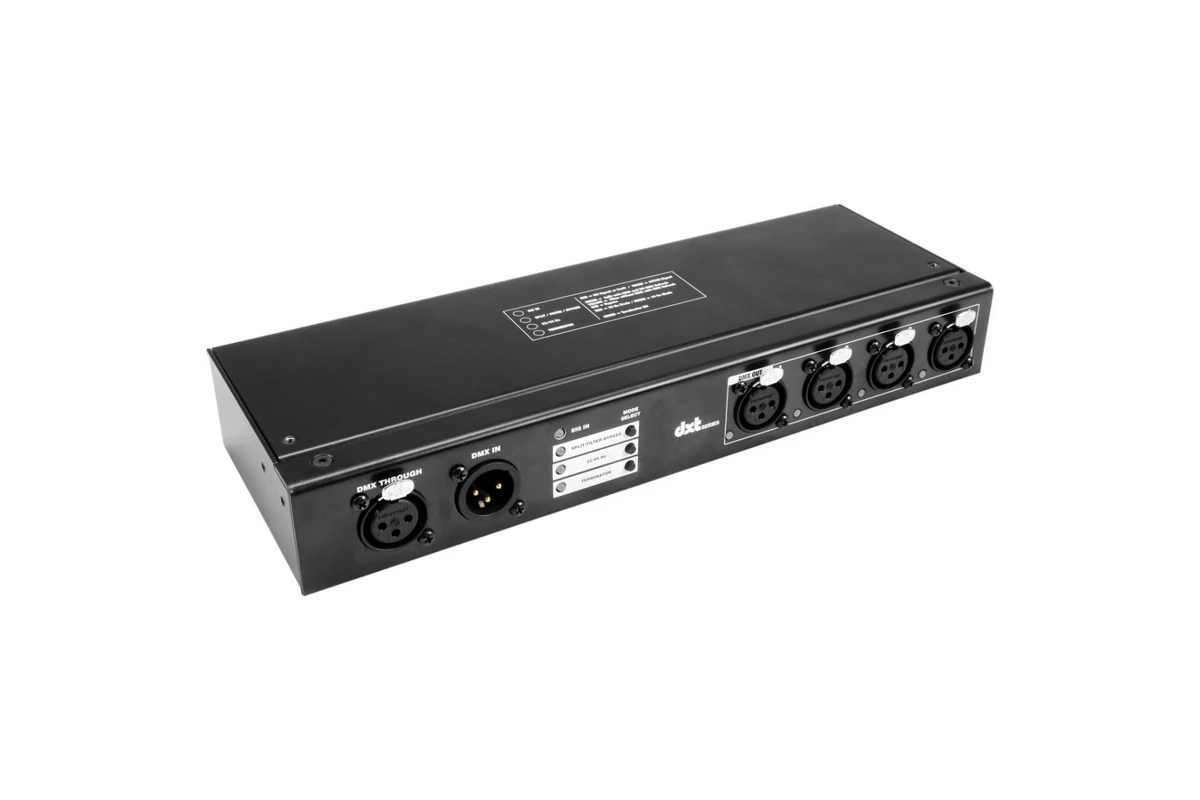

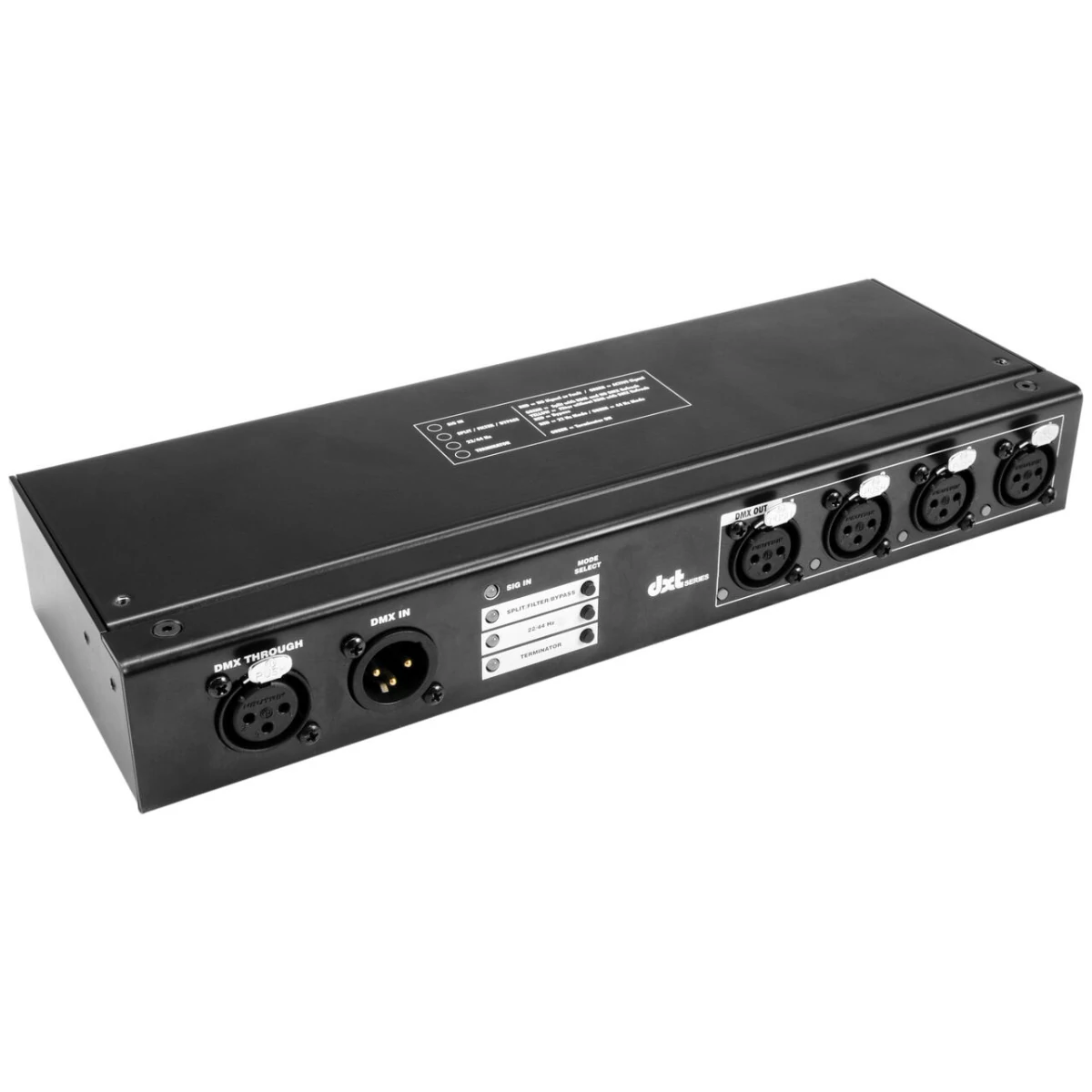

EUROLITE DXT-SP 1in/4out PRO DMX RDM Splitter

92.900 Ft (73.150 Ft + ÁFA)

Menny.:db

Klikkelj ide szállítás, fizetés, személyes átvétel infoért RDM-kompatibilis DMX osztó 1 bemenet/4 kimenet jel erősítéssel
Elérhetőség:	Szállítás alatt
Szállítási díj:	Ingyenes
GARANCIA:	2 év garancia
Reg hűségforintok:	930

A csomagszámodat emailben küldjük, a csomag feladása után.

Ha részletfizetéssel vásárolná meg a terméket, helyezze a kosárba, majd a fizetési módnál jelölje be a Cofidis expressz online áruhitelt.

Az itt látható egyedi termékleírások és képek a DJSoundLight Kft tulajdonát képezik.

RDM-capable DMX splitter, 1in/4out with signal boost

DMX splitter for splitting one DMX input signal to 4 DMX outputs
Connections: 2 x DMX input (parallel), 2 x DMX feed-through output (parallel), 4 x DMX output
Input and feed-through output are duplicated on the front and rear panel and connected in parallel
Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
Bypass function to process signals from older devices similar to DMX signals
Output frequency adjustable: 22/44 Hz
Switchable termination resistor
Outputs galvanically isolated
Each DMX output with independent driver and status indicator
Each DMX output can be connected to 32 DMX devices
Controlling by RDM
DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
Built with NEUTRIK connector
Made in Germany

Package contents

Power supply	100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption	3,6 W
Power connection	Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)
DMX input	2 x 3-pin XLR (M) mounting version
DMX output	4 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator
2 x 3-pin XLR (F) mounting version Bypass
Control	RDM
DMX features	DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM
Use of brands	Built with NEUTRIK connector
Dimensions	Width:27,5 cm
Depth	10 cm
Height	4,1 cm
Weight	1,21 kg
